Commercial Wheelchair Lifts

When it comes to mobility, there is not one magic commercial wheelchair lift solution that will work for the numerous chassis and wheelchair combinations that are on the market today. However, BraunAbility has designed a line of ADA compliant wheelchairs lifts to meet a wide range of needs. Whichever wheelchair van lift you choose, you can be sure it is durable and safe, ensured by Braun’s 45 years of experience.

Braun Century Wheelchair Lift

  • Fully automatic NHTSA compliant lift, operated by an attendant
  • Loading position - either direction
  • Interfaces with OEM interlocks
  • Lift mounted lights - platform illuminated as it deploys
  • Hand control with illuminated functions
  • Locking mechanical Inboard Barrier (IB), powder coated yellow for safety and high visibility, prevents movement if occupied
  • Pump design prevents platform folding when occupied, quiet operation and low current draw
  • Durable redesigned baseplate reduces lift weight and allows for quicker and easier service of hose/wiring
  • Easily installed, step-by-step installation instructions, no peripheral hardware required
  • Visual and audible warning provides notification of unsafe conditions
  • Spring-loaded outer barrier that will transition to the fully up position as the platform leaves the ground, has durable rubber nose guard and is powder coated yellow for safety and high visibility
  • Parallel arms lift with hydraulic cylinders
  • Side or rear door application
  • Several platform widths and lengths
  • Dual handrails for security and convenience
  • Bridging feature permits the wheelchair user to board the lift from sidewalks or inclines
  • Floor to ground travel is 48” (54” floor to ground model available)
  • Lifting capacity is 800 lbs (1000 lbs lifting capacity model available)
  • Integrated back-up pump
  • Equipped with an adjustable anti-rattle feature to avoid unpleasant noise in the vehicle during transit
  • Durable high-gloss powder coated finish
  • Lift-Tite system stows the lift platform securely while the vehicle is in transit
  • Pump module with removable cover offers easy access to all components

Braun Commercial Wheelchair Lift

Braun Millennium Wheelchair Lift

  • Fully automatic NHTSA compliant lift, operated by an attendant
  • Loading position - either direction
  • Interfaces with OEM interlocks
  • Lift mounted lights - platform illuminated as it deploys
  • Hand control with illuminated functions
  • Locking mechanical Inboard Barrier (IB), powder coated yellow for safety and high visibility, prevents movement if occupied
  • Pump design prevents platform folding when occupied, quiet operation and low current draw
  • Durable redesigned baseplate reduces lift weight and allows for quicker and easier service of hose/wiring
  • Easily installed, step-by-step installation instructions, no peripheral hardware required
  • Visual and audible warning provides notification of unsafe conditions
  • Hydraulic outer barrier that will be in the fully up position before the platform leaves the ground, has durable rubber nose guard and is powder coated yellow for safety and high visibility
  • Parallel arms lift with hydraulic cylinders
  • Side or rear door application
  • Two platform widths available
  • Dual handrails for security and convenience
  • Bridging feature permits the wheelchair user to board the lift from sidewalks or inclines
  • Floor to ground travel is 48”
  • Lifting capacity is 800 lbs
  • Integrated back-up pump
  • Equipped with an adjustable anti-rattle feature to avoid unpleasant noise in the vehicle during transit
  • Durable high-gloss powder coated finish
  • Lift-Tite system stows the lift platform securely while the vehicle is in transit
  • Pump module with removable cover offers easy access to all components

Braun Commercial Wheelchair Lift

Braun Vista Wheelchair Lift

  • Fully automatic NHTSA compliant lift, operated by an attendant
  • Loading position - either direction
  • Interfaces with OEM interlocks
  • Lift mounted lights - platform illuminated as it deploys
  • Unique stacking platform improves driver and passenger visibility through the window
  • Low platform stowed height of 31” for easy viewing out of the window and access to the door lock normally blocked by the platform
  • Hand control with illuminated functions
  • Mechanically operated Automatic Roll Stop (ARS) that will transition to the fully up position as the platform leaves the ground
  • Locking mechanical Inboard Barrier (IB), powder coated yellow for safety and high visibility, prevents movement if occupied
  • Pump design prevents platform folding when occupied, quiet operation and low current draw
  • Durable redesigned baseplate reduces lift weight and allows for quicker and easier service of hose/wiring
  • Easily installed, step-by-step installation instructions, no peripheral hardware required
  • Visual and audible warning provides notification of unsafe conditions
  • Parallel arms lift with hydraulic cylinders
  • Side or rear door application
  • Dual handrails for security and convenience
  • Bridging feature permits the wheelchair user to board the lift from sidewalks or inclines
  • Floor to ground travel is 48”
  • Lifting capacity is 800 lbs
  • Integrated back-up pump
  • Equipped with an adjustable anti-rattle feature to avoid unpleasant noise in the vehicle during transit
  • Durable high-gloss powder coated finish
  • Lift-Tite system stows the lift platform securely while the vehicle is in transit
  • Pump module with removable cover offers easy access to all components

Braun Commercial Wheelchair Lift

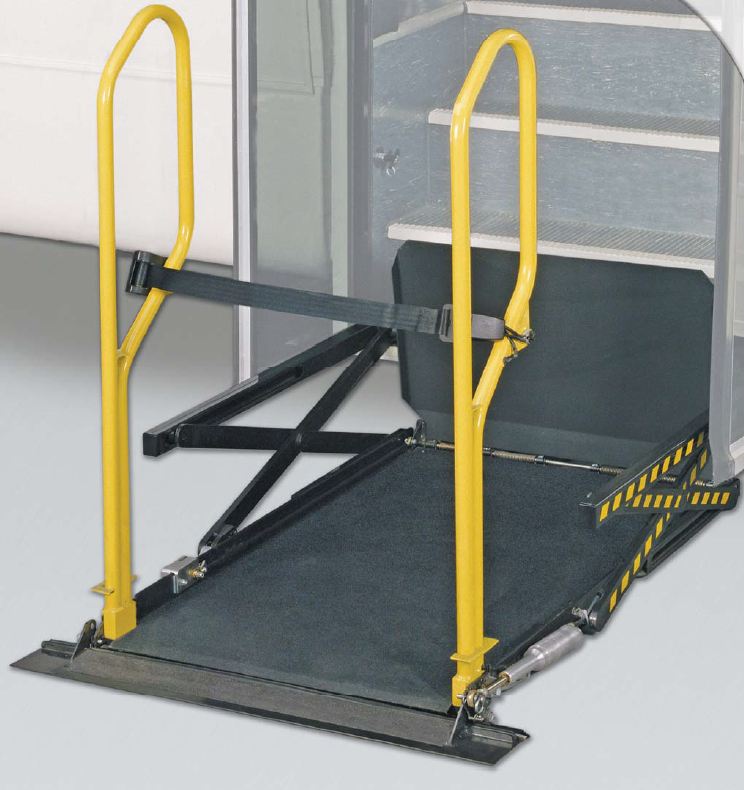

Braun UVL Under Vehicle Wheelchair Lift

The Braun UVL, or “Under Vehicle Lift,” has emerged as the premier commercial wheelchair lift series for those seeking ADA compliance along with maximum ambulatory seating. Offered as an alternative to platform-style lifts, the UVL retracts into a weather-tight enclosure and remains out of your way until needed.

The lift may be installed in your existing step configuration or in dedicated door applications. With a number of different models capable of several floor-to-ground heights, there is a UVL designed to fit your needs. Keep in mind that the dedicated application of the UVL makes it different from other Braun lift series, and the selection process depends on many factors. Our commercial mobility consultants stand ready to work closely with you in the lift selection process.

Braun Commercial Wheelchair Lift
